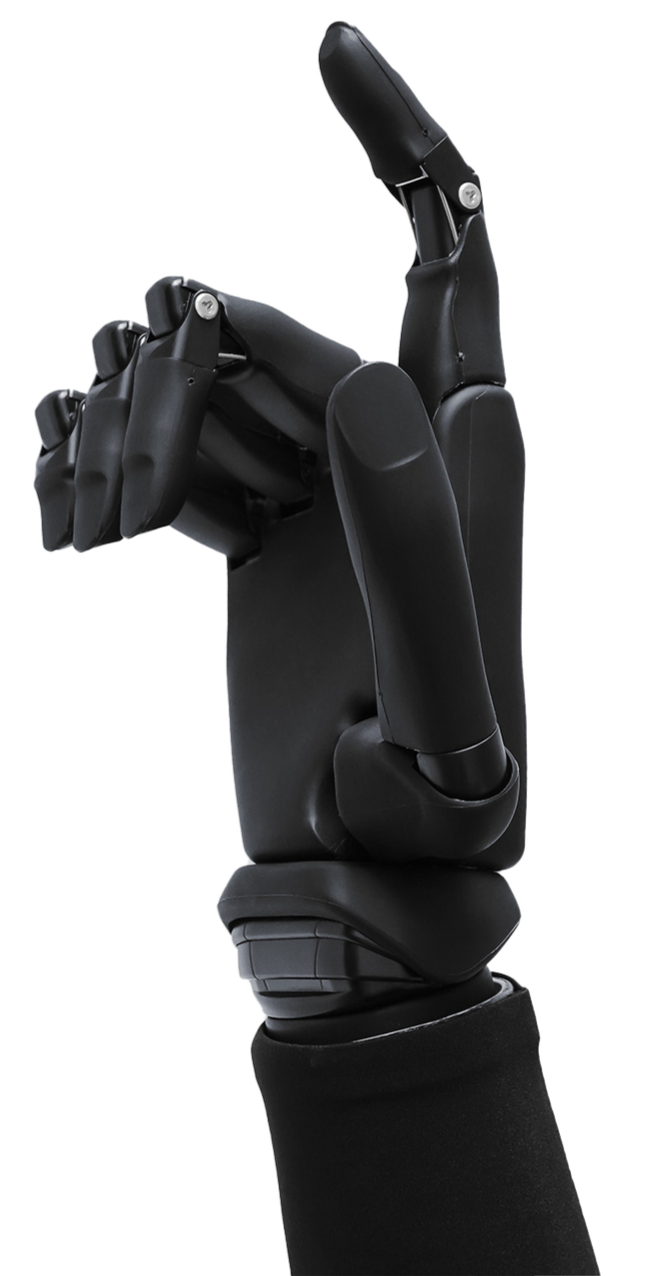

The VINCENTevolution5 is the latest generation of the
cutting-edge myoelectric prosthetic hand from Vincent Systems,
designed with the ultimate in precision, durability, and usability
in mind.

Durability & Materials

• Waterproof to IP68 - fully sealed against dust and water (including the wrist), enabling continuous submersion up to ~1.5 m for around 30 minutes without restrictions on water type.

• Constructed on a high-strength aluminium frame, with an optional titanium frame for extra ruggedness.

• Features elastic base joints and spring-loaded finger elements that adaptively adjust around objects, enhancing grip and adaptability.

• Encased in silicone covers, offering improved hygiene, durability, tactile feel and a natural grip.

Wrist Integration & Bilateral Use

• Four wrist variants available, from transcarpal to quick-snap with
  bendable joint.

• Designed and optimised for bilateral amputees, ensuring consistent
  functionality on both sides.

Control & Grip Selection

• Features an intuitive gesture-based control system (“single trigger control”) - no external
  switches needed, just cleverly structured open/close impulses.

• Allows selection of up to 14 preset grip patterns, with capacity for users to define additional ones via an app—totaling up to 32 grips and positions.

• Control signals, grip selection, locking, and battery status are visible and adjustable directly on the hand for ease of use and optimal functionality.

Sensory Feedback & Adaptive Grip

• Offers vibrotactile feedback - small vibrations correspond to applied force, giving the user a refined “sense of touch”.

• Adaptive grip is enhanced through both the tactile design and internal feedback mechanisms, aiding object handling.

Performance & Technical Specs

• Six battery-powered motors drive the fingers and thumb.

• Grip forces:

  • Thumb: 35 N (~3.5 kg)

  • Finger (proximal): 95 N (~9.5 kg)

  • Thumb-index: 44 N (~4.4 kg)

  • Thumb pivot: 125 N (~12.5 kg)

• Weight: 400–594 g depending on size/model

• Load capacity:

  • Closed hand: 450 N (~45 kg)

  • Closed single finger: 350 N (~35 kg)

• Battery life: ~5 years (expected lifespan)

• Compatible with smartphone/tablet app for control customisation.

Customization & Aesthetics

• Available in five hand sizes (XS–XL) to suit a broad user base.

• Offers up to 40 colour combinations: various joint hues (black, blue, gold, copper, silver, titanium) paired with eight cosmetic shell options (including skin tones, pearl, transparent)

• Features a touchscreen-capable index finger.
